110Kv CCV Machine 3 Layer Co Extrusion Line For XLPE Cable / Power Cable 240 Square Mm
Product Details:
| Place of Origin: | hebei |
| Brand Name: | Hongli |
| Certification: | CE,ISO |
| Model Number: | 35-132KV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 700,00$-950,000$ |
| Packaging Details: | wooden packing |
| Delivery Time: | 90-120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 set per month |
|
Detail Information |
|||
| Size: | 630 | Copper Size: | 50-1600 Square Mm |
|---|---|---|---|
| Aluminum Size: | 70-1600 Square Mm | Max Cable Diamater: | 100mm |
| Motor Brand: | Siemens | Inverter Brand: | Yaskawa |
| Extruder Size: | 175+100+80 | Main Power: | 960KVA |
| Factory Size: | More Than 135 Meters | XLPE Close Size: | 42m+12m+72m |
| Cable Weight: | 25kg/m | Name: | CCV Lines |
| Highlight: | 110Kv CCV Machine,CCV Machine 3 Layer,3 Layer Co Extrusion Line |
||
Product Description
110Kv CCV Line 3-Layer Co Extrusion Extruder Machine For XLPE Cable For Power Cable 240 Square Mm
About us:
Our factory has been manufacturing extrusion lines for over 20 years ,we also produce copper buncher, cable twisting machine, cable tapping machine, copper drawing machine.Until now we have exported some production lines to Pakistan, iraq,Tunisia, Algerial, Egypt, India, Afghanistan,Nigeria, Sudan, we are still working on other country,
Main brands for our machine

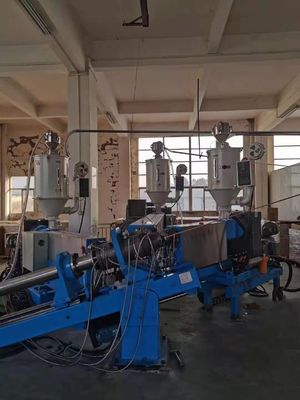

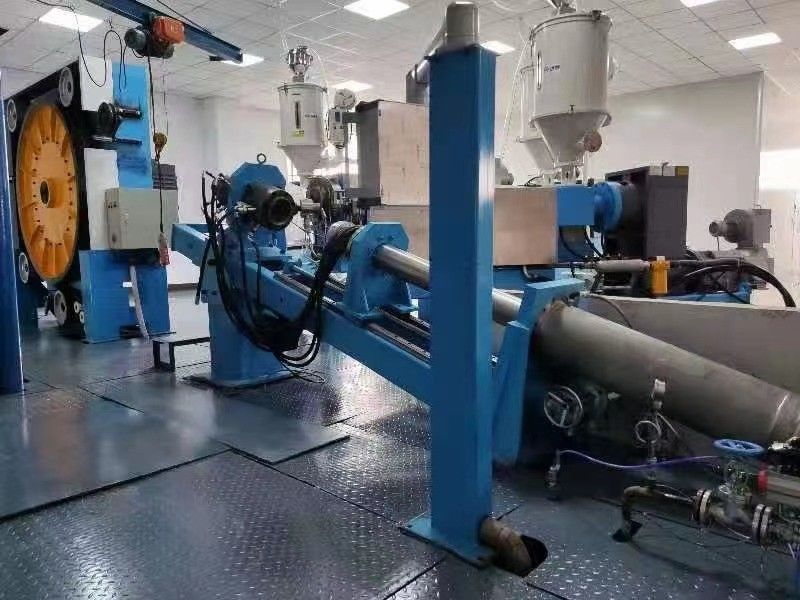

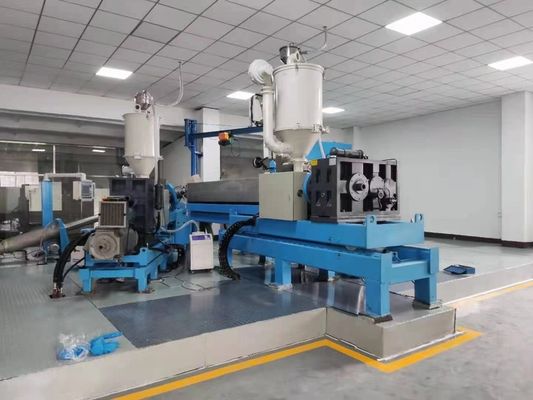

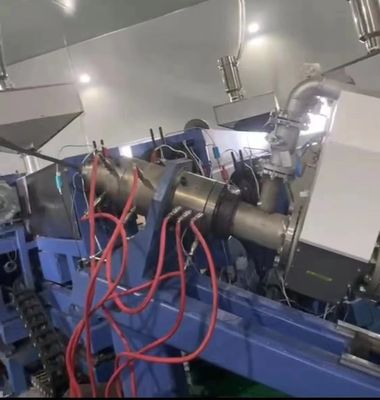

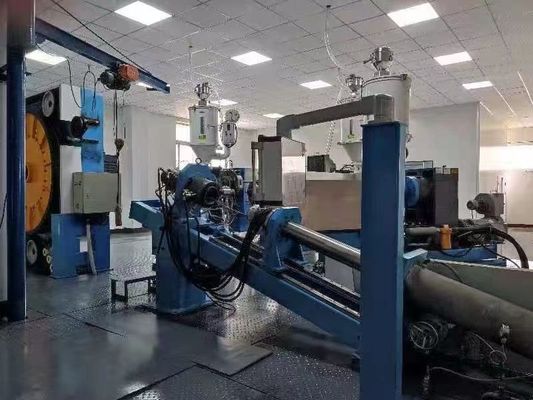

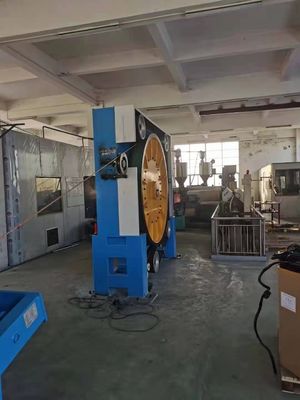

This CCV line is used to make 3 layers co-extrusion cables, voltage from 6 kv to 35 kv.
2.Technical Parameter
| Voltage class | XLPE 6-33 KV | 35-132kv |
| Conductor cross section |
Cu: 35-630 mm2 Al: 50-800 mm2 |
Cu: 50-1600 mm2, Al: 70-1600 mm2,
|
| Max. Weight of cable | 10 Kg/m | 25 Kg/m |
| Outer diameter of cable | ≤Φ75 mm | ≤Φ90 mm |
| Wall thickness |
Φ65 extruder 0.5-2.0 mm for inner layer Φ150 extruder 2.5-10.5 mm for insulation layer Φ90 extruder 0.5-2.0 mm for outer layer |
Φ80 extruder 0.5-3.0 mm for inner layer Φ175 extruder 10.5-20 mm for insulation layer Φ100 extruder 0.5-3.0 mm for outer layer |
| Length of vulcanizing tube | ≥102 m | ≥114m |
| Heating section length | 42 m, 6 m×6 sections | 42 m, 6 m×6 sections |
| Pre-cooling section length | 12 m, 6 m×2 sections | 12 m, 6 m×2 sections |
| Water cooling length | 54 m, 6 m×9sections | 66 m, 6 m×11sections |
| Needed area of main platform (L×W) |
≥24 m×18 m for one line ≥30*24m for two lines |
≥24 m×18 m for one line ≥30*24m for two lines |
| Height of 3-platform | ≥10 m | ≥16.5m |
| Needed length of workshop (premises) | ≥135 m | ≥148m |
|
Nitrogen gas
|
Pressure: 2.0-2.5 Mpa Purity: 99.5% Consumption :0.4-1.8 m3/h Volume of N2 tank: 5 m3 |
Pressure: 2.0-2.5 Mpa Purity: 99.5% Consumption: 4-8 m3/h Volume of N2 tank: 8 m3 |
|
Cooling water
|
Pressure :0. 2-2 MPa Consumption: 12.5 m3/h |
Pressure :0.4-0.6 MPa Consumption:15 m3/h |
|
Compressed air
|
Pressure: 0.6-0.8MPa Consumption: 0.8 m3/h
|
Pressure: 0.6-0.8MPa Consumption: 0.8 m3/h
|
|
Installed capacity
|
750kVA (Power voltage: 380V, 50HZ, | 900kVA (Power voltage: 380V, 50HZ |
| Two power incoming lines | 3*185mm2, 3*240mm2 | 3*240mm2, 3*240mm2 |
